잘리면서, 정처없이 돌아다니, 각도, 보, 플레이트와 플랜지의 성형 기계를 펀칭하는 CNC 드릴링을 위한 중국 최고의 품질 제품!
새로운 것을 하고 좋은 것을 하세요 !
|
|
제품 상세 정보:
결제 및 배송 조건:
|
| 플레이트 크기: | 1500x800mm | 판 두께: | 5~25mm |
|---|---|---|---|
| 펀칭 력: | 1000/1200kN | 마킹 힘: | 800/1000kN |
| CNC인지 아닌지: | CNC | 다이 스테이션: | 4 |

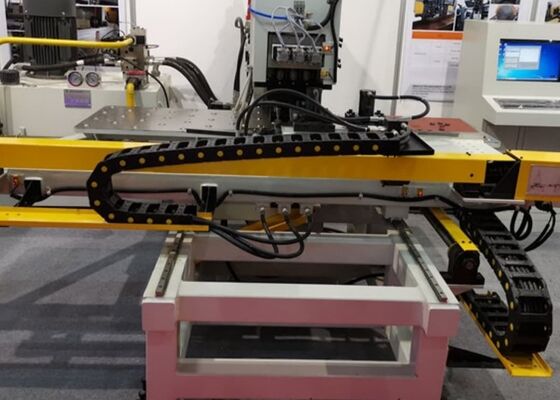

CNC Plate Punching Machine With Max Drilling Diameter 50mm And BT50 Taper For Metal Sheet Drilling
Applicable industry:
The CNC plate punching and drilling machine is specifically designed for punching, marking, and drilling operations on steel plates in the steel tower manufacturing industry. Moreover, it is widely utilized for conducting punching, drilling, and marking workflows on metal plates across a diverse range of other industrial sectors.
Specifications:
| Model | BNC100 | BNCZ100 | BNHD120 | |||
| Max size of work piece (mm) | 1500×800 | |||||
| Max. punching diameter (mm) | Φ26 | |||||
| Max. drilling diameter (mm) | / | Φ50 | ||||
| Taper of drilling spindle | / | / | BT50 | |||
| Plate thickness (mm) | Punching | 5～25 (Q235) | ||||
| Drilling | / | 40 | ||||
| Punching force (kN) | 1000/ 1200 | |||||
| Marking force (kN) | 800/ 1000 | |||||
| Min. distance between hole and plate edge (mm) | Punching | 25 | ||||
| Drilling | / | Depends on hole diameter | ||||
| Character size(mm) | 14×10×19 | |||||
| Qty. of character | 12 | |||||
| Die-stations | 3 | 4 | ||||
| Feeding speed of drilling (mm/min) | / | 25~280 | 0~5000 | |||
| Stroke of drilling spindle(mm) | / | 180 | 350 | |||
| Rotation speed of drilling spindle(r/min) | / | 120~560 | 30~3000 | |||
| Programming mode |
Command programming, Auto CAD drawing or layout software |
|||||
| Overall dimensions L×W×H (m) | 3.2×3×1.9 | 3.2×3×2.6 | 3.3×3.2×3 | |||
Product feature:
1. The frame of the CNC channel steel punching and marking machine is manufactured through C-type plate welding, offering exceptional structural stiffness and substantial operational clearance. Furnished with three die stations (one designated for marking functions), the equipment enables automatic die station switching to optimize workflow efficiency. Its clamping mechanism exhibits versatile adaptability to a wide range of workpieces, employing a zero-reference baffle as the positioning datum, while the workpiece is supported by a ball-bearing worktable to ensure seamless handling. The X and Y axis motions are controlled by servo motors and transmitted via high-precision ball screws, with a Programmable Logic Controller (PLC) overseeing punching position regulation—thereby achieving full automation of the entire machining process. Once the workpiece program is entered by the operator, it can be stored, retrieved, and reused consistently for repetitive production cycles.
2. The CNC steel drilling machine incorporates Computer Numerical Control (CNC) technology and servo motor-driven feed mechanisms, guaranteeing exceptional operational efficiency and consistent workpiece accuracy.
3. Key functional components adopt a modular design, facilitating straightforward maintenance and optimized repair workflows.
4. The CNC metal plate punching and marking machine enables the integration of punching, marking, and drilling processes on a single metal plate, achieving multi-process consolidation in a single operational cycle.
5. The drilling machine unit incorporates core functionalities including rapid descent, slow working feed, and fast retraction—all of which substantially enhance operational efficiency in real-world application scenarios.
6. Outfitted with an intelligent fault self-diagnostic system, the equipment enables timely identification of operational irregularities, facilitating proactive maintenance practices and ensuring stable production continuity.
7. The programming process is designed with user-centric usability: operators are able to input hole diameters, hole positional coordinates, and workpiece batch volumes into the control system. Moreover, it supports the implementation of programs generated by lofting software, or allows for direct CAD/CAM file conversion to achieve smooth program execution.

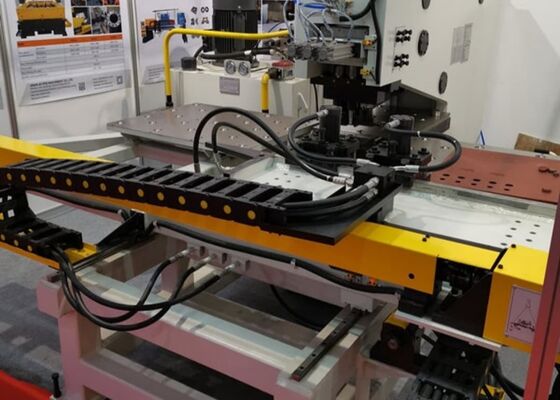

Machine details:
This professional metal processing equipment is primarily engineered for punching, marking, and drilling operations on steel plates in the steel tower manufacturing industry. It delivers superior machining precision, complying with rigorous tolerance requirements and surface finish standards. Beyond the steel tower sector, this multi-functional equipment also offers dependable punching, drilling, and marking solutions for metal plates across a wide array of industrial fields. It maintains consistent operational efficiency and processing accuracy for all types of metal workpieces, thereby enhancing workflow productivity and upgrading product quality across various industrial applications.
