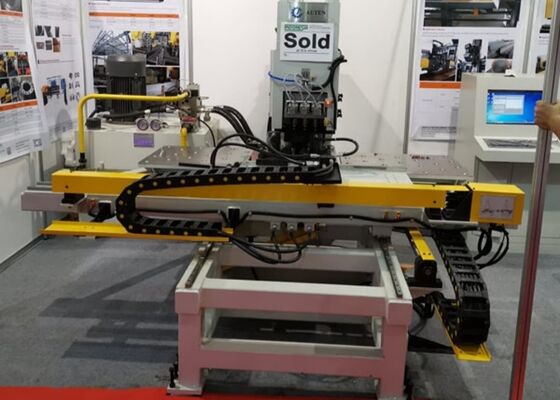

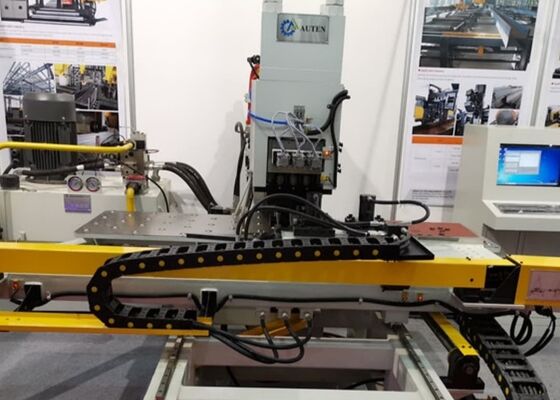

BT50 Drilling Spindle CNC Punching Machine For Steel Metal Sheet Hole Forming 40mm Drilling Thickness
Product Introduction:
The stronger CNC Hydraulic Marking and Punching or Drilling Machine Piston fixed, cylinder movement, four-oriented, eight-oriented band, smooth motion, long-term stability of the working pressure to reduce the punching power during the partial load, the device greatly improved the stability and reliability. For long time using this machine, it can keep high precision and long life.
Product Configuration:
| Model | BNHD120 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product feature:
1. The machine-frame is made by C type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic
switching die stations. Clamping system can adapt to different workpiece, with zero baffle as datum mark, and workpiece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of workpiece to computer for repeated calling program in the future.
2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Carry out punching, marking and drilling on the one plate.
5. Drilling unit has the functions including rapid falling, slow work feeding and quick feeding back to improve working efficiency.
6. Easy programming, may input the diameter and position of holes to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
7. The hydraulic station adopts double pump, single motor, water cooling system, sleeve type coupling for all pipelines. The glue of hose and coupling are exported.
8. The X & Y axis are driven by servo motor, ball screw and linear guide, which ensure the high precision.
9. With self-diagnosis failures function.
10. Lighten the working strength of workers.
Machine details:
This specialized metalworking system is meticulously designed to carry out punching, marking, and drilling operations on steel plates within the steel tower manufacturing industry. It provides outstanding machining precision, adhering to stringent tolerance and surface finish requirements. In addition to its primary use in the steel tower sector, this versatile equipment consistently performs punching, drilling, and marking functions on metal plates across various industrial applications. It guarantees enhanced operational efficiency and precise processing of diverse metal workpieces, streamlining workflows and elevating product quality across multiple industries.
