제품 상세 정보:
결제 및 배송 조건:
|
| 작업물의 최대 크기(mm): | 1500*800 | 최대. 펀칭 직경 (mm): | Φ26 |
|---|---|---|---|
| 최대. 드릴링 직경 (mm): | Φ50 | 드릴링 스핀들의 테이퍼: | BT50 |
| 펀치력(kN): | 1000/1200 | 마킹력(kN): | 800/1200 |
| 문자크기(mm): | 14*10*19 | 수량 성격의: | 12 |

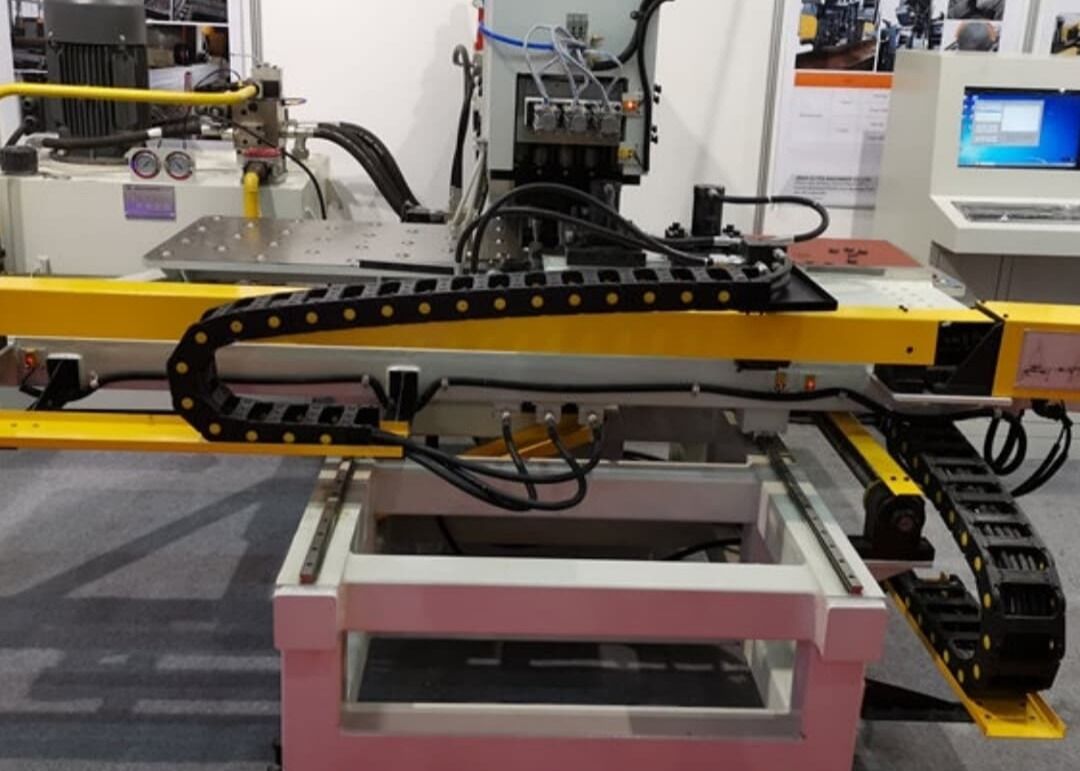

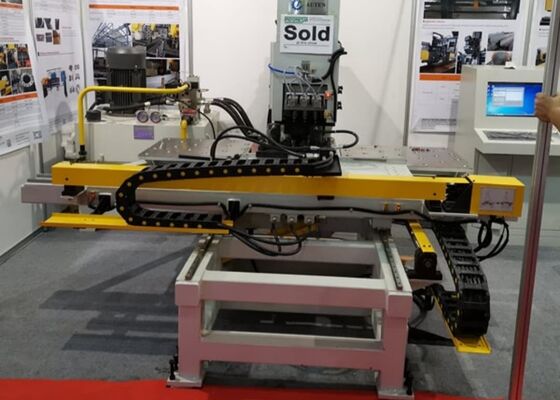

Steel Tower Industry CNC Plate Punching Marking Drilling Machine Transmission Tower Manufacturing
Product Introduction:
The CNC Hydraulic Marking and Punching or Drilling Machine features a fixed piston and a cylinder that allows for both four-way and eight-way movement. This design ensures smooth operation and long-term stability. The system is optimized to reduce punching power under partial load conditions, effectively lowering the working pressure. As a result, the device significantly enhances both stability and reliability. With extended use, this machine maintains high precision and boasts a long service life.
Product Configuration:
| Model | BNHD120 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product feature:
The machine frame is constructed using C-type plate welding, ensuring excellent rigidity and providing a large operational workspace. The machine is equipped with three die stations, one of which is dedicated to marking, and features automatic die station switching. The clamping system is adaptable to various workpieces, utilizing a zero baffle as the reference mark, with the workpiece supported by a rolling-ball worktable. The X and Y axes are driven by servo motors and ball screws, while the dual-axis CNC system controls the punching position, facilitating fully automated machining. Operators can input workpiece dimensions into the computer, enabling the system to recall programs for future use.
2. The machine utilizes CNC technology with servo motor feeding, ensuring high efficiency and stable workpiece precision.
3. Key functional components are designed with modular assembly, simplifying maintenance and repairs.
4. The machine performs punching, marking, and drilling operations on a single plate.
5. The drilling unit is equipped with functions such as rapid descent, slow feed during operation, and quick return feeding, all of which enhance operational efficiency.
6. The machine offers user-friendly programming, allowing the input of hole diameter and position directly into the computer. It also supports programs generated by CAD/CAM software or those produced by lofting software.
7. The hydraulic station features a dual-pump, single-motor design with a water cooling system and sleeve-type couplings for all pipelines. The hose and coupling seals are sourced from international suppliers.
8. The X and Y axes are driven by servo motors, ball screws, and linear guides, ensuring exceptional precision.
9. The system is equipped with a self-diagnosis function to identify and report faults.
10. The design reduces the physical workload on operators.
Machine details:
This specialized metalworking system is expertly engineered to perform punching, marking, and drilling operations on steel plates in the steel tower manufacturing industry. It delivers exceptional machining accuracy, meeting rigorous tolerance and surface finish standards. Beyond its primary application in the steel tower sector, this versatile equipment reliably executes punching, drilling, and marking tasks on metal plates for a wide range of industrial applications. It ensures improved operational efficiency and precise processing of various metal workpieces, optimizing workflows and enhancing product quality across multiple industries.
