제품 상세 정보:
결제 및 배송 조건:
|
| 최대. 가공판 폭: | 1000mm | 가공 판 두께: | 2-100mm |
|---|---|---|---|
| 가공판 길이: | 100mm~무한 | 최소 공작물: | 50x50x2mm |
| 맥스. 부하 용량: | 500kg | 기계 동력: | 28kW |
| 피드 모터: | 2 | 수유 속도: | 10~4000mm/분 |

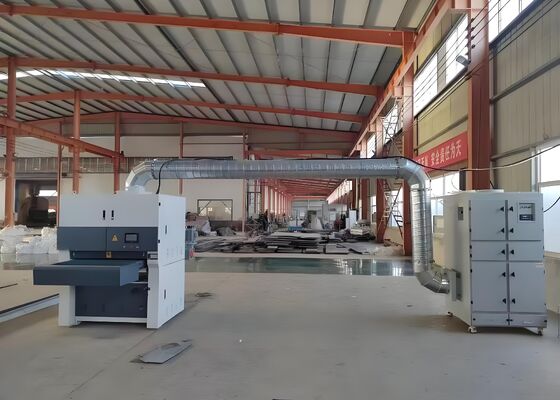

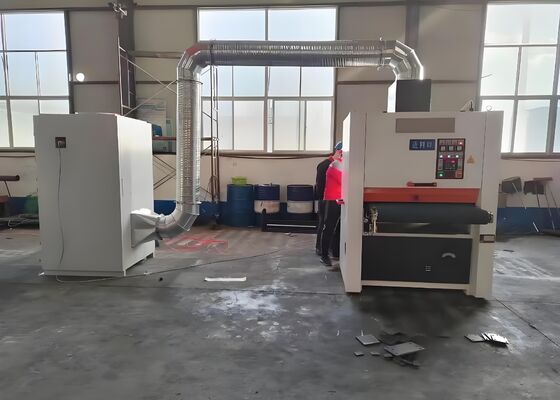

Laser Cutting Plate Polishing Plate Polishing Machine Plasma Cutting Plate Deburring
Equipment Purpose:
The plate polishing machine is primarily designed for the polishing of metal plates that have undergone laser cutting or plasma cutting processes. It serves to improve the surface finish of the plates, removing any burrs, rough edges, or other imperfections left by the cutting process, ensuring the plates have a smooth, refined, and uniform surface. This enhances both the visual appeal and functionality of the metal plates, making them ready for use in various applications.
Product Configuration:
| No. | Model | BP1000 |
| 1 | Max. processing plate width | 1000mm |
| 2 | Processing plate thickness | 2-100mm |
| 3 | Processing plate length | 100mm～∞ |
| 4 | Min. workpiece | 50x50x2mm |
| 5 | Max. loading capacity | 500kgs |
| 6 | Machine power | 28KW |
| 7 | Feed motor | 2 |
| 8 | Feeding speed | 10～4000 mm/min |
| 9 | Abrasive belt deburring slag, burrs | Height less than 1.5mm |
| 10 | Cartridge dust collector | 5.5KW |
| 11 | Cartridge dust collector size | 1000x1000x2100mm |
| 12 | Machine dimensions | 2450x1700x2150mm |
Application industries:
This type of polishing machine is commonly used in industries where high-quality metal surfaces are essential. It finds wide application in the production of electric power towers, communication towers, power fittings, steel structures, storage shelves, and similar products. These industries require polished metal plates to ensure structural integrity, aesthetics, and durability of their products.
Equipment features:
1. Automatic Continuous Feeding:
The machine features an automatic, continuous feeding system that supports unlimited plate lengths. This enhances production efficiency by allowing for uninterrupted processing of materials, which in turn helps to reduce overall production costs. It ensures a smooth, continuous operation, making it ideal for high-volume manufacturing environments.
2. CNC Control:
The machine is equipped with a CNC control system, allowing for precise and accurate processing of the plates. The operation information and status are communicated in real-time, providing operators with immediate feedback and ensuring seamless, error-free operation. This feature simplifies the control and monitoring process, making it easier to manage the production line.
3. CNC PLC and Touch Screen Control:
The system integrates a CNC PLC (Programmable Logic Controller) with a user-friendly touch screen interface. Operators can start and stop the machine with the touch of a button, simplifying the operation. The intuitive design of the control system ensures that the machine is easy to operate and maintain, requiring minimal training for personnel.
4. Pneumatic Tensioning Device:
The polishing machine is equipped with a pneumatic tensioning device that ensures stable and consistent operation. This system effectively controls the tension of the abrasive belt, extending its service life and maintaining optimal polishing performance. The device ensures that the belt stays in proper alignment during operation, preventing wear and tear that could affect the polishing quality.
5. Simple, Safe, and Efficient Operation:
The machine is designed for ease of use and maintenance. Its straightforward control system makes it safe and reliable for operators to use, with minimal risk of errors. Additionally, the machine is built to deliver high production efficiency, ensuring that operations run smoothly and consistently, reducing downtime and increasing overall throughput.
A plate polishing machine is primarily used for the polishing of metal plates that have been processed through laser cutting or plasma cutting methods. These machines are designed to smooth and refine the surface of the metal plates, removing any burrs, rough edges, or oxidation marks that may have resulted from the cutting processes. By providing a high-quality finish, plate polishing machines improve the aesthetic appearance of the plates and enhance their overall performance in subsequent operations or applications. This type of machinery is widely used in industries such as metal fabrication, manufacturing, and automotive, where precision and surface quality are crucial.
