잘리면서, 정처없이 돌아다니, 각도, 보, 플레이트와 플랜지의 성형 기계를 펀칭하는 CNC 드릴링을 위한 중국 최고의 품질 제품!
새로운 것을 하고 좋은 것을 하세요 !
|
|
제품 상세 정보:
결제 및 배송 조건:
|
| 플레이트 크기: | 1500x800mm | 판 두께: | 5~25mm |
|---|---|---|---|
| 펀칭 력: | 1000/1200kN | 마킹 힘: | 800/1000kN |
| CNC인지 아닌지: | CNC | 다이 스테이션: | 4 |

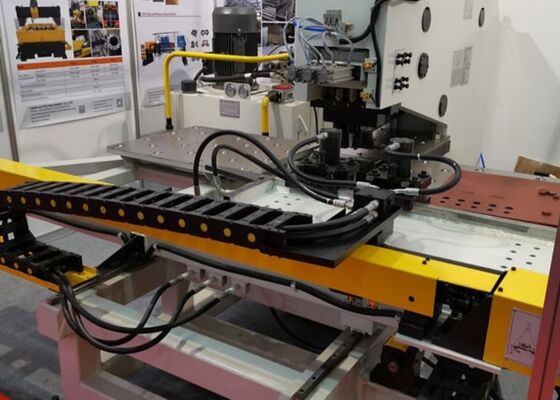

Heavy Plate Hole Making BNCZ100 CNC Plate Drilling Machine Steel Fabrication Companies
Applicable industry:
A highly specialized CNC machine designed for the punching and marking of steel plates in the steel tower industry. It is also utilized for similar punching and marking operations across various other sectors.
Main Component:
This machine consists of the main unit, workbench, hydraulic clamping system, drilling module, punching module, hydraulic power unit, electrical control panel, and an automated lubrication system.
Specifications:
| Model | BNCZ100 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | / | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 25~280 | |
| Stroke of drilling spindle(mm) | 180 | |
| Rotation speed of drilling spindle(r/min) | 120~560 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.2*3*2.6 | |
Product feature:
1. The machine frame is constructed using C-type plate welding, ensuring exceptional rigidity while providing an expansive work area. It is equipped with three die stations—two designated for punching and one for marking—with automatic die station switching. The clamping system is adaptable, capable of securing various workpieces, and includes a reference block for precise alignment. The workpiece is supported by a roller-ball worktable. The X and Y axes are driven by servo motors and ball-screw systems, with position feedback monitored by a PLC, enabling automated control of the punching processes. Operators can input the workpiece program, which can be stored and reused for future operations.
2. The machine incorporates CNC technology and servo motor-driven feeding, ensuring improved efficiency while maintaining consistent accuracy for the workpieces.
3. Key functional components are designed with modular construction, facilitating straightforward maintenance and repair procedures.
4. It is capable of performing both punching and marking operations on a single steel plate.
5. The system provides intuitive programming, supporting CAD files and seamlessly integrating with programs generated by lofting software. It is fully compatible with TEKLA lofting software files, including the NC1 format.
6. The machine is equipped with an integrated self-diagnostic fault detection system.
7. The X and Y axes are driven by servo motors, ball screws, and linear guides, ensuring exceptional precision.
8. The main structure is constructed from a C-shaped welded steel plate framework, offering outstanding rigidity and a spacious operational area.
9. The machine features three workstations, including one dedicated marking station, with automatic station switching functionality.
10. The clamping system is designed to accommodate workpieces of varying thicknesses. A reference zero block is utilized to support the workpiece on a ball-bearing worktable.
11. The X and Y axes are driven by servo motors, ball screws, and high-precision linear guides, powered by a dual-axis CNC system to ensure precise control of the punching position.
12. The entire processing workflow is fully automated, requiring the operator to simply input the workpiece drawing into the computer.
Machine details:
This specialized metalworking system is custom-engineered to perform punching, marking, and drilling operations on steel plates used in the steel tower manufacturing industry. It guarantees exceptional machining accuracy, meeting rigorous tolerance standards and surface finish requirements. Beyond the steel tower sector, this versatile equipment offers reliable punching, drilling, and marking capabilities for metal plates across a wide range of industries. It consistently achieves high operational throughput and precise processing for various metal workpieces, thereby enhancing workflow efficiency and improving product quality in numerous industrial applications.
