제품 상세 정보:
결제 및 배송 조건:
|
| 앵글 가공 사이즈(mm): | 63x5~200x20 | 이송속도(mm/min): | 100~570 |
|---|---|---|---|
| 가공 길이 (mm): | 최소 350 | 수량 스핀들의: | 1 |
| 수량 공급 모터의: | 2 | 스핀들 회전수(r/min): | 100~400 |
| 실린더 압력(kN): | 60 | 전체 크기(m): | 약 1.8x1.4x2 |

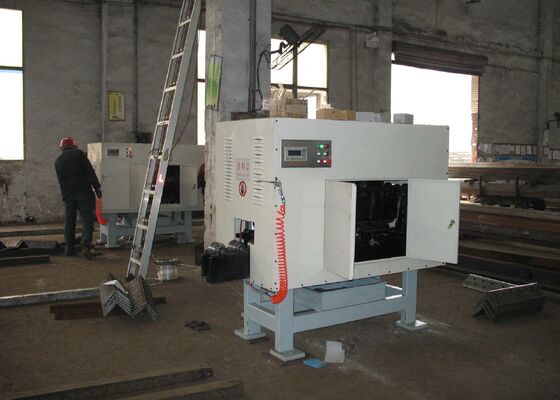

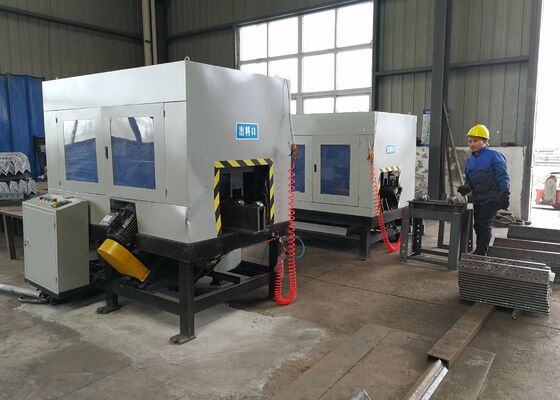

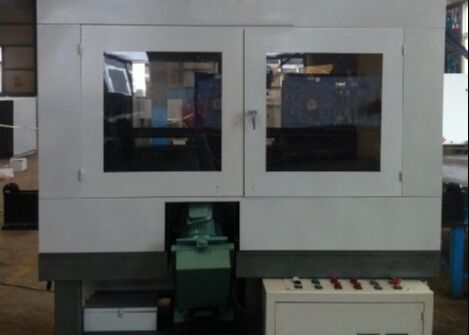

Model GQ200 Cnc Angle Root Milling Machine 100~570mm/Min Feeding Speed
Application Industry:
Mainly used to process the inner arc of angle steel.
Product Parameters:
| Model | GQ200 |
| Angle processing size (mm) | L63x5~L200x20 |
| Feeding speed (mm/min) | 100~570 |
| Processing length (mm) | Min.350 |
| Qty. of spindle | 1 |
| Qty. of feeding motor | 2 |
| Rotation of spindle (r/min) | 100~400 |
| Pressure of cylinder (kN) | 60 |
| Weight (ton) | About 2 |
| Overall size(m) | About 1.8x1.4x2 |
Workpiece process
1. Bring angle iron into the machine.
2. In automatic mode, press the cycle start button, the device automatically.
3. The same specifications of the cutting Angle can be continuous.
Equipment usage instructions and Characteristics
1. The device uses high-speed milling for back and root of angle grinding processing technology.
2. Greatly improving the root-cleaning production efficiency, ten times efficient than the traditional planer.
3. Easily operate, low requirement for the worker’s operation level.
4. Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.
5. Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.
6. The machine is easy to operate, flexible regulation and stable operation.
Configurations
1. Continuous feeding device adopts gear motor, greatly improve the working efficiency.
2. Electrical components are brand of Schneider and Omron, high quality, performance stable.
3. Using two spindles, reduce the number of each cutter cutting quantity, improve the service life of cutting tools.
4. Main shaft adopts two 3kw motors and the application of synchronous belt to damping, The device is stable and reliable.
5. Using cutting liquid cooling to improve the service life of cutter blades.
The equipment is specifically engineered for angle back milling, facilitating precise and efficient processing of angle steel components. It delivers finished workpieces with smooth surfaces, accurate dimensions, and well-defined edge profiles, rendering them ideal for structural assembly and industrial applications. Sample components processed by this equipment illustrate its superior machining precision, consistent quality, and capability to manage intricate back-milling profiles, offering a concrete benchmark for assessing the machine’s performance and appropriateness for production needs.
In the construction of ultra-high voltage (UHV) transmission lines, where towers must endure extreme weather conditions and substantial loads, this equipment serves a pivotal role in fabricating the angle steel components that constitute the towers’ primary structure. It effectively executes drilling and punching operations on the angle steel employed in tower frameworks, cross-arms, and other essential structural elements, ensuring accurate dimensions and robust connections that uphold the overall stability and structural integrity of the towers.
