제품 상세 정보:
결제 및 배송 조건:
|
| 기능: | 드릴링 및 마킹 | 각도 크기(mm): | 100×100×10~360×360×35 |
|---|---|---|---|
| 최대. 원료길이(m): | 14 | 마킹력(kN): | 1000/1200 |
| 문자그룹 수: | 4 | 문자 수: | 18 |
| 문자 크기(mm): | 14*10*19 | 백마크 범위(mm): | 50-330 (무단) |

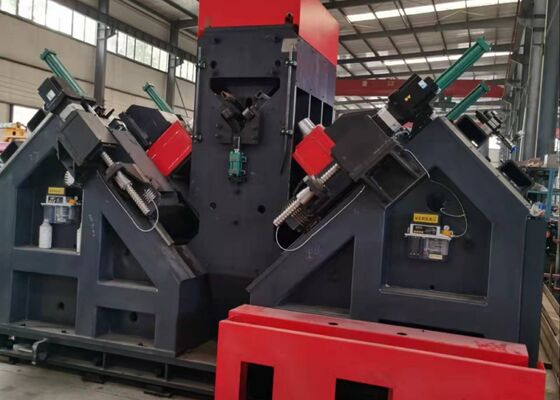

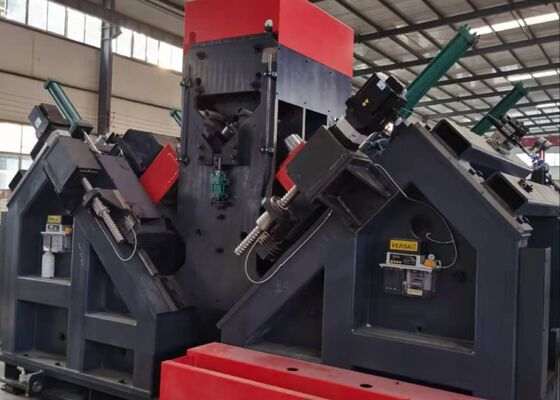

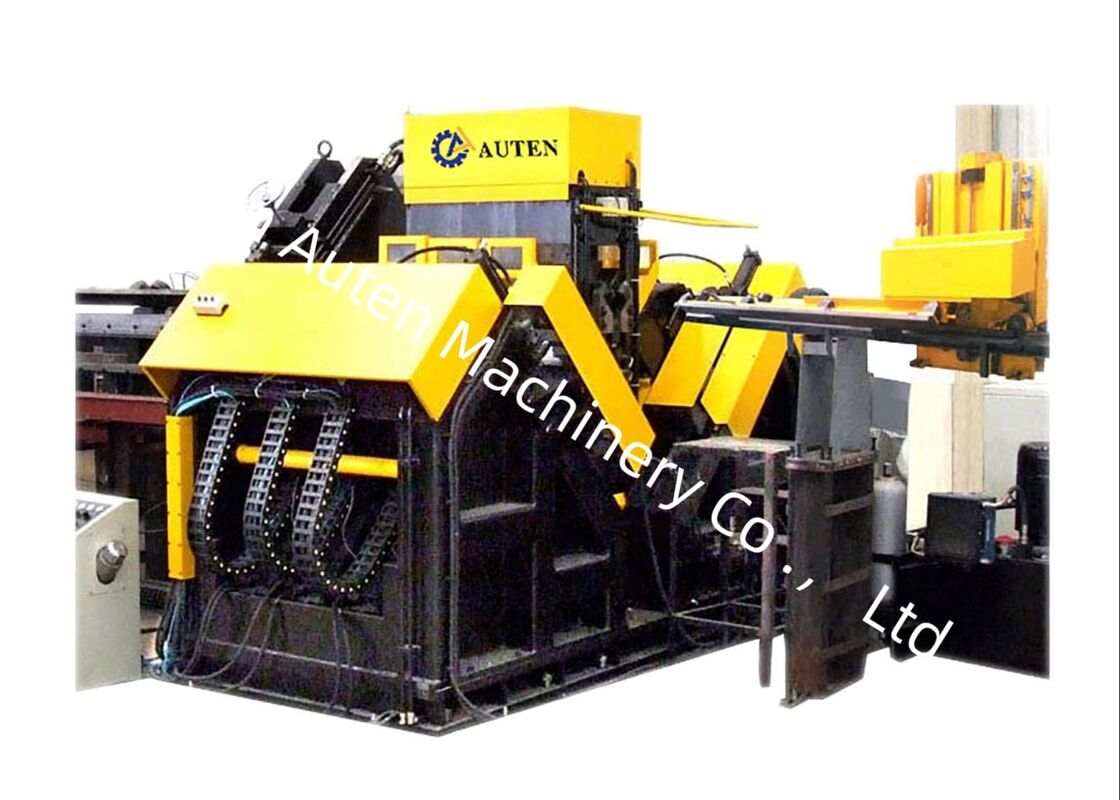

Used In Transmission Line Tower CNC Angle Drilling Stamping Machine Model ADM3635
Product Usage:
The CNC angle steel drilling and marking production line is specifically engineered for drilling and stamping large, high-strength angle steel used in transmission line towers. It is capable of processing all required holes on the angle steel, ensuring exceptional hole quality and precise positional accuracy. In addition, the production line offers high operational efficiency and a superior level of automation.
Main parameters:
| Model | ADM3635 |
| Angle size (mm) | 100×100×10~360×360×35 |
| Max. length of blank(m) | 14 |
| Taper of drilling spindle | BT40 |
| Max. Drilling diameter (mm) | Ф40 |
| Qty. of drill on each side (pcs) | 3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) | 6000 |
| Max.cutting speed of drill (m/min) | 200 |
| CNC axes | 9 |
| Range of back mark (mm) | 50-330 (stepless) |
| Max. angle feeding speed (m/min) | 40 |
| Marking force (kN) | 1000/1200 |
| Qty. of character group | 4 |
| Qty. of character in each group | 18 |
| Character size(mm) | 14×10×19 |
| Drill bit cooling system | Air atomization dry internal cooling |
| Programming mode | Lofting software or instruction programming |
| Overall dimensions (m) | 34×8.9×3 |
Product Features:
1. Advanced Automation. The production line is integrated with a fully automated loading system, comprising a horizontal feeding channel and a rotary loading rack, together with an automated unloading system and material feeding mechanism. All drilling and punching operations on the angle steel are completed in a single continuous production cycle. The entire process operates without manual intervention, significantly reducing labor requirements while improving production efficiency and operational reliability.
2. High-Precision Drilling System. The drilling spindle utilizes a premium BT40 precision spindle manufactured in Taiwan and incorporates an internal coolant delivery system to achieve excellent drilling performance and dimensional accuracy. The drilling assembly is configured with six CNC-controlled drilling heads, evenly distributed with three heads on each side of the angle steel. When holes share the same diameter and are located at identical distances from the upper edges of the angle steel flanges, the corresponding drilling heads on both sides can operate simultaneously, maximizing machining efficiency and productivity.
3. User-Friendly Software Interface. The software provides a bilingual Chinese/English interface, facilitating intuitive operation and ensuring clear visualization of workpiece drawings.
4. Streamlined Programming. Program creation is simplified: users need only input the workpiece dimensions, hole diameters, hole spacing, and quantity. Alternatively, programs can be directly generated via CAD/CAM lofting software. The system also supports .NC1 files produced by TEKLA software, ensuring broad compatibility and efficient workflow integration.
5. Premium Components. Key hydraulic, pneumatic, and electrical parts are sourced from well-established, reputable brands to ensure reliability and long-term performance.
6. Integrated Fault Diagnostics. The equipment is equipped with an advanced self-diagnostic system for prompt identification and troubleshooting of operational faults.
7. Optional Shearing Module. An optional shearing unit is available, incorporating state-of-the-art dual-blade cutting technology for enhanced precision and efficiency.
These samples represent a variety of standard specifications and hole configurations of angle steel commonly used in transmission line tower construction. They enable prospective users or inspectors to directly examine and assess the operational performance of the equipment, offering tangible and intuitive references for evaluating whether the machinery meets the practical production demands of transmission line tower fabrication.
In the construction of ultra-high-voltage (UHV) transmission lines, where towers are required to withstand extreme environmental conditions and significant structural loads, this equipment serves a critical function in the fabrication of angle steel components that constitute the main load-bearing framework of the towers. It efficiently performs drilling and punching operations on angle steel used in tower bodies, cross-arms, and other key structural members, ensuring high dimensional precision and dependable connection quality. As a result, it contributes to the overall structural integrity, operational reliability, and long-term durability of transmission towers throughout their service life.
