잘리면서, 정처없이 돌아다니, 각도, 보, 플레이트와 플랜지의 성형 기계를 펀칭하는 CNC 드릴링을 위한 중국 최고의 품질 제품!
새로운 것을 하고 좋은 것을 하세요 !
|
|
제품 상세 정보:
결제 및 배송 조건:
|
| 플레이트 크기: | 1500x800mm | 판 두께: | 5~25 (Q235) |
|---|---|---|---|
| 펀칭 력: | 1000/1200kN | 마킹 힘: | 800/1000kN |
| CNC인지 아닌지: | CNC | 다이 스테이션: | 3 |
| 최대. 펀칭 직경 (mm): | Φ26 | 전체 치수 L*W*H(m): | 3.2*3*1.9 |

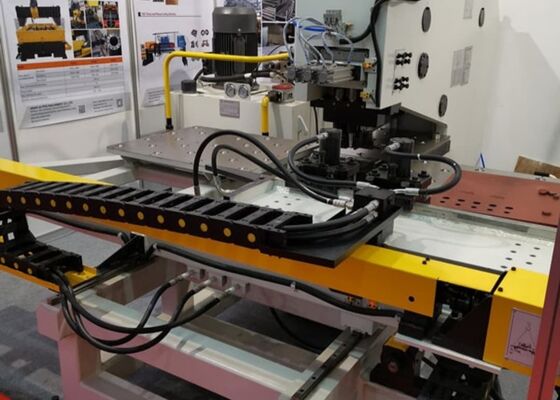

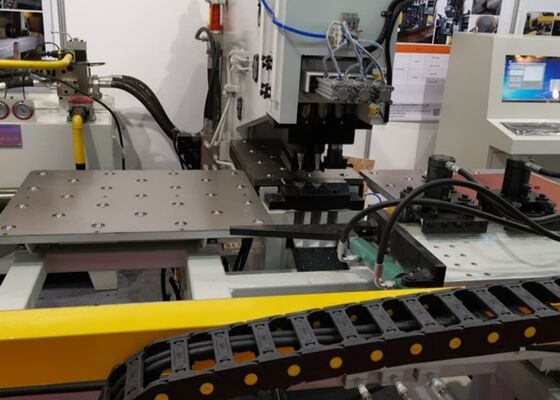

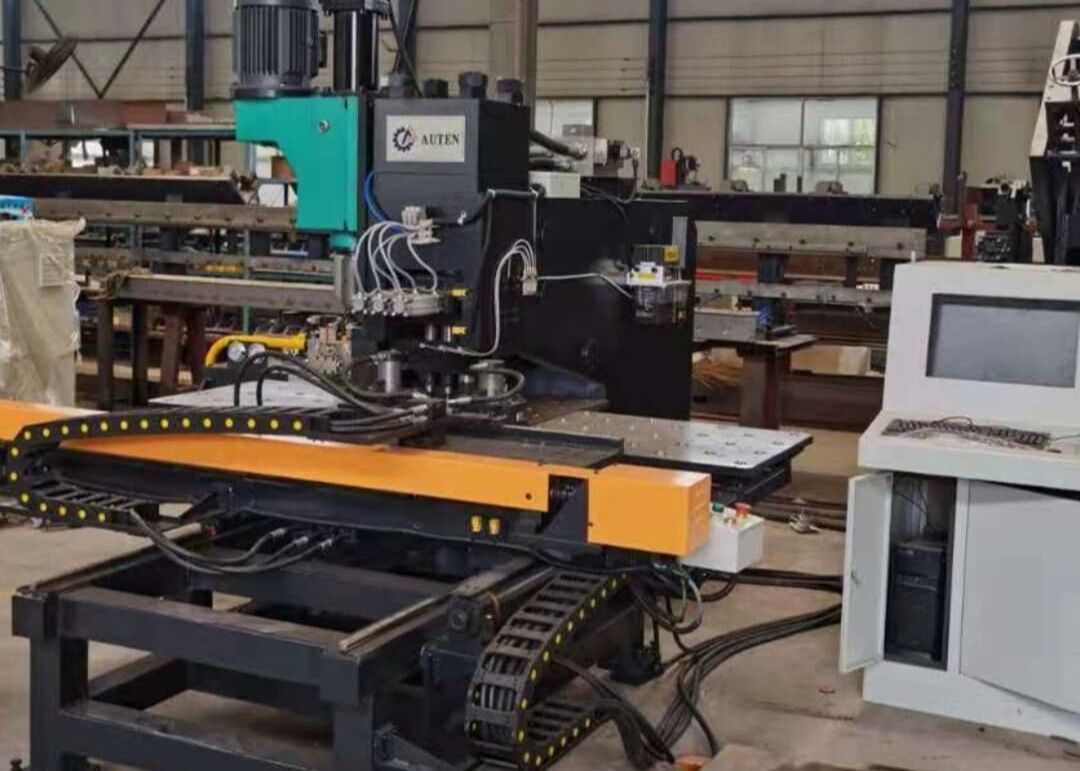

CNC Connecting Plates Punching Machine Bridge Angle Steel Industries Use
Applicable industry:
The machine used for high efficiency punching on the connecting plates which used widely in bridge, angle steel and steel structure industries etc.
Specifications:
| Model | BNC100 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | / | |
| Taper of drilling spindle | / | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | / | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | / | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 3 | |
| Feeding speed of drilling (mm/min) | / | |
| Stroke of drilling spindle(mm) | / | |
| Rotation speed of drilling spindle(r/min) | / | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.2*3*1.9 | |
Structure Features:
1. The machine frame adopts a C-type welded steel plate structure, offering excellent rigidity and a spacious operating area.
2. The machine is equipped with three processing stations (including one marking station), with automatic station changeover to enhance operational efficiency.
3. The clamping system is designed to accommodate workpieces of varying thicknesses. Combined with a zero-reference positioning block, the workpiece is supported on a ball-transfer worktable for smooth handling and accurate positioning.
4. The X-axis and Y-axis are driven by servo motors, ball screws, and precision linear guideways. A dual-axis CNC control system ensures accurate positioning and precise punching operations.
5. The entire machining process is fully automated. Operators only need to import the workpiece drawing into the control system, significantly simplifying operation and improving productivity.
Details:
1. C-shaped open structure: The machine features a C-type open design, providing ample space for convenient operation and improved accessibility.
2. All-steel welded construction: The frame, base, and worktable are constructed entirely from welded steel plates, which undergo stress-relief aging treatment to ensure high strength, excellent rigidity, and long-term durability.
3. Four tooling positions: The machine is equipped with four standard tooling stations—two for punching, one for drilling, and one for marking. Tooling position changes are performed automatically for efficient operation.
4. Clamping system: The machine is equipped with two hydraulic clamping units for securely holding steel plates on the worktable. The system is designed to accommodate workpieces of various sizes and thicknesses. In combination with reference positioning blocks and a ball-transfer worktable, it ensures accurate positioning and smooth material handling.
5. Movable worktable: The worktable movement is driven by servo motors and precision ball screws, enabling accurate and stable positioning of the plate. During machining, two hydraulic clamps securely hold the workpiece to maintain processing accuracy and operational stability.
6. X-axis and Y-axis movement: The X and Y axes are driven by dual high-capacity linear rolling guide pairs on both sides, along with precision ball screws and high-inertia AC servo motors, ensuring exceptional positioning accuracy and smooth motion control.
7. Push-type lubrication system: The machine is equipped with a manual lubrication system for both the linear guides and ball screws, ensuring consistent maintenance and long-term operational reliability.
8. Configuration: All critical hydraulic and electrical components of this machine are imported from internationally recognized manufacturers, delivering superior quality, high reliability, low failure rates, and extended service life.
Machine details:
This advanced metalworking system is specifically engineered to execute punching, marking, and drilling operations on steel plates for the steel tower manufacturing industry. It ensures superior machining accuracy, meeting stringent tolerance requirements and high surface finish standards. Beyond the steel tower sector, this versatile equipment provides reliable punching, drilling, and marking capabilities for metal plates across a wide range of industrial applications. It consistently delivers high operational efficiency and precise processing for all types of metal workpieces, thereby optimizing workflow and enhancing product quality in diverse manufacturing environments.
