제품 상세 정보:
결제 및 배송 조건:
|
| 앵글 가공 사이즈(mm): | 63x5~200x20 | 이송속도(mm/min): | 100~700 |
|---|---|---|---|
| 가공 길이 (mm): | 최소 350 | 수량 스핀들의: | 2 |
| 수량 공급 모터의: | 2 | 스핀들 회전수(r/min): | 100~400 |
| 실린더 압력(kN): | 60 | 전체 크기(m): | 약 2.2x1.4x2 |

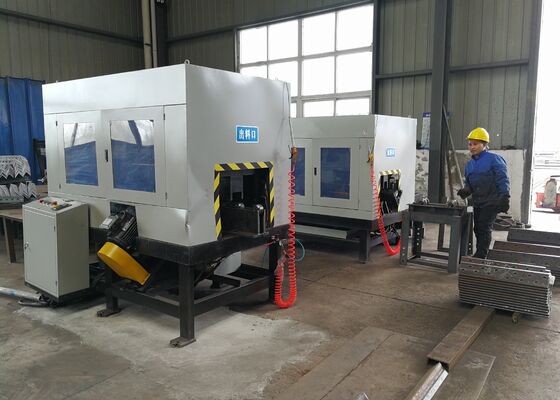

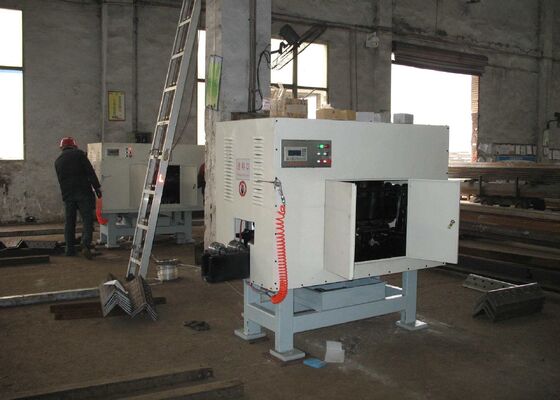

Used To Process The Inner Arc Of Angle Steel Cnc Angle Root Milling Machine Model GQ250
Application Industry:
Mainly used to process the inner arc of angle steel.
Product Parameters:
| Model | GQ250 |
| Angle processing size (mm) | L63x5~L250x32 |
| Feeding speed (mm/min) | 100~700 |
| Processing length (mm) | Min.350 |
| Qty. of spindle | 2 |
| Qty. of feeding motor | 2 |
| Rotation of spindle (r/min) | 100~400 |
| Pressure of cylinder (kN) | 60 |
| Weight (ton) | About 2.5 |
| Overall size(m) | About 2.2x1.4x2 |
Workpiece process
1. Bring angle iron into the machine.
2. In automatic mode, press the cycle start button, the device automatically.
3. The same specifications of the cutting Angle can be continuous.
Equipment usage instructions and Characteristics
1. The equipment employs high-speed milling technology for back and root angle grinding operations.
2. Significantly enhances root-cleaning productivity, achieving efficiency up to ten times that of conventional planers.
3. Simple to operate, with minimal skill requirements for personnel.
4. Substantially reduces labor intensity through a high level of automation, enabling continuous angle feeding during operation.
5. Unlike conventional planers, which are limited by processing length, the new machine offers greater operational flexibility. It eliminates the need for clamping devices, resulting in a more convenient and efficient processing workflow.
6. The machine features user-friendly operation, flexible adjustment capabilities, and reliable, stable performance.
Configurations:
1. The continuous feeding system is driven by a geared motor, significantly enhancing operational efficiency.
2. Electrical components are sourced from Schneider and Omron, ensuring superior quality and stable performance.
3. Equipped with dual spindles, the machine reduces the cutting load on each tool, thereby extending tool service life.
4. The main spindle is powered by two 3 kW motors and incorporates a synchronous belt drive for vibration reduction, ensuring stable and reliable operation.
5. A cutting fluid cooling system is utilized to prolong the service life of the cutter blades.

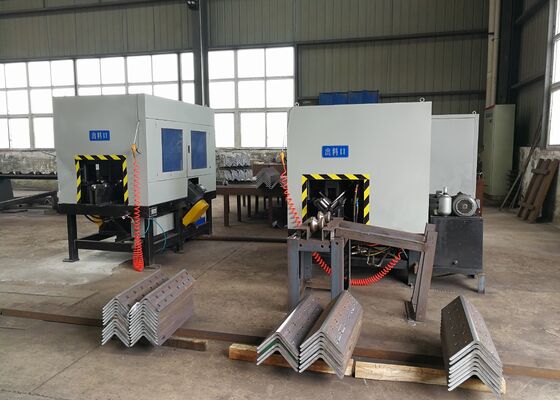

The equipment is purpose-built for angle back milling, enabling precise and efficient processing of angle steel elements. It produces finished components with smooth surfaces, accurate dimensions, and well-defined edge profiles, making them suitable for structural assembly and industrial applications. Sample parts processed using this machine demonstrate its exceptional machining accuracy, consistent quality, and ability to handle complex back-milling profiles, providing a tangible reference for evaluating the machine’s performance and suitability for production requirements.
In the construction of ultra-high-voltage (UHV) transmission lines, where towers are required to withstand severe environmental conditions and significant structural loads, this equipment plays a critical role in the fabrication of angle steel components used in the tower framework. It efficiently performs drilling and punching operations on angle steel utilized in tower bodies, cross-arms, and other key structural members, ensuring dimensional accuracy and secure connections. This contributes to the overall strength, stability, and long-term reliability of the transmission towers.
