| 앵글 가공 사이즈(mm): | L63x5~L360x35 | 이송속도(mm/min): | 100~700 |
|---|---|---|---|
| 가공 길이 (mm): | 최소 350 | 수량 스핀들의: | 2 |
| 수량 공급 모터의: | 2 | 스핀들 회전수(r/min): | 100~400 |
| 실린더 압력(kN): | 60 | 전체 크기(m): | 약 2.5x2.5x2 |

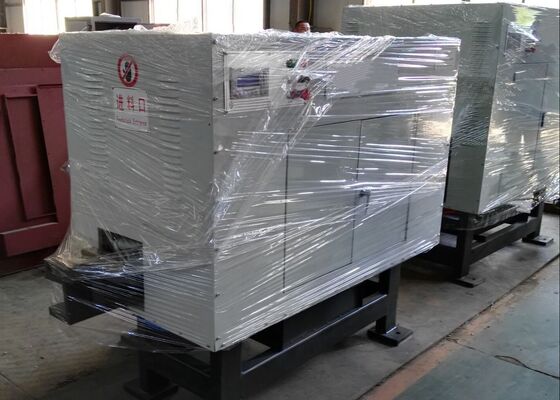

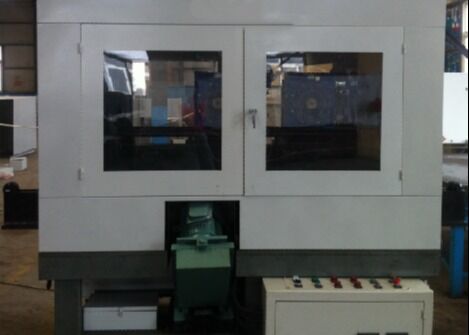

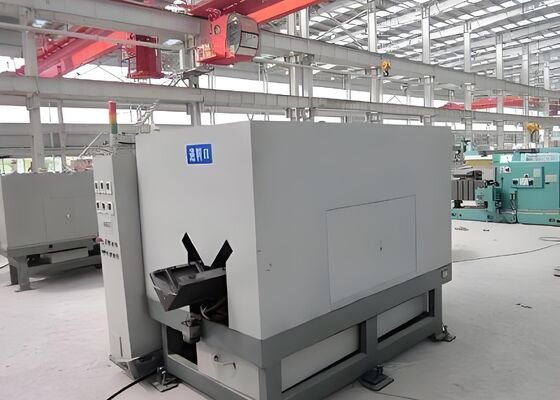

Model GQ360 CNC Angle Steel Profile Root Milling Machine For Power Communication Tower
Application Industry:
Mainly used to process the inner arc of angle steel.
Product Parameters:
| Model | GQ360 |
| Angle processing size (mm) | L63x5~L360x35 |
| Feeding speed (mm/min) | 100~700 |
| Processing length (mm) | Min.350 |
| Qty. of spindle | 2 |
| Qty. of feeding motor | 2 |
| Rotation of spindle (r/min) | 100~400 |
| Pressure of cylinder (kN) | 60 |
| Weight (ton) | About 3 |
| Overall size(m) | About 2.5x2.5x2 |
Workpiece process
1. Load the angle iron into the machine.
2. In automatic mode, press the cycle start button; the system will operate automatically.
3. Angles of the same specification can be processed continuously.
Equipment usage instructions and Characteristics
1. The equipment utilizes high-speed milling technology for both back and root angle grinding operations.
2. Greatly improves root-cleaning productivity, achieving up to ten times the efficiency of traditional planers.
3. Easy to operate, requiring minimal operator skill.
4. Reduces labor intensity significantly through a high degree of automation, enabling uninterrupted angle feeding during operation.
5. Unlike conventional planers constrained by processing length, this machine provides enhanced operational flexibility. It eliminates the need for clamping devices, streamlining the workflow and improving efficiency.
6. Designed for user-friendly operation, flexible adjustment, and reliable, stable performance.
Configurations:
1. The continuous feeding system is powered by a geared motor, significantly improving operational efficiency.
2. Electrical components are supplied by Schneider and Omron, guaranteeing high quality and stable performance.
3. Equipped with dual spindles, the machine reduces the cutting load on individual tools, thereby extending tool life.
4. The main spindle is driven by two 3 kW motors and incorporates a synchronous belt drive to minimize vibration, ensuring stable and reliable operation.
5. A cutting fluid cooling system is included to extend the service life of the cutting tools.
The machine is specifically engineered for angle back milling, enabling precise and efficient processing of angle steel components. It produces finished parts with smooth surfaces, accurate dimensions, and well-defined edge profiles, making them suitable for structural assemblies and industrial applications. Sample components processed with this equipment demonstrate exceptional machining accuracy, consistent quality, and the capability to handle complex back-milling profiles, providing a clear benchmark for evaluating machine performance and production suitability.
In the construction of ultra-high-voltage (UHV) transmission lines, where towers must endure harsh environmental conditions and significant structural loads, this machine plays a critical role in manufacturing angle steel components for tower frameworks. It efficiently performs drilling and punching operations on angle steel used in tower bodies, cross-arms, and other critical structural elements, ensuring dimensional precision and secure connections. This contributes directly to the overall strength, stability, and long-term reliability of the transmission towers.
