제품 상세 정보:
결제 및 배송 조건:
|
| 파워 엘리베이터 부하 등급: | 700KN | 파워 슬립 정격 부하: | 700KN |
|---|---|---|---|
| 파이프 트리핑 효율: | 45pcs/시간 | 기계 전원: | 9kw |
| 리프팅 하중: | 350kg | 리프팅 높이: | 4000mm |
| 오일 파이프 길이: | 8500~9750mm | 전체 크기: | 11200x2300x2700mm |

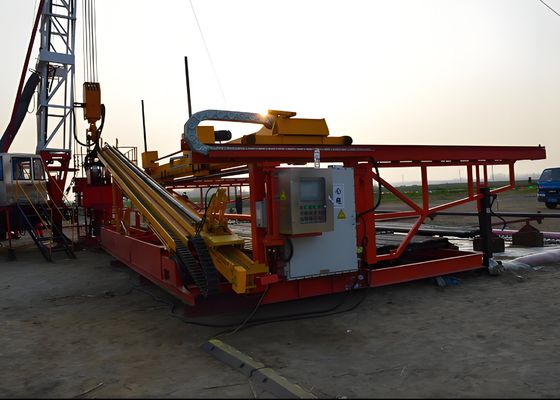

11200x2300x2700 Size Oil Well Minor Workover Intelligent Operation 8500~9750mm Oil Pipe Length
Product Overview:
The oil well equipment is primarily designed for well maintenance operations across oil, gas, and water wells. Its core functionalities include running and pulling tubing, drill pipes, sucker rods, as well as pump retrieval. It stands as the most advanced intelligent and automated well repair solution in the global oilfield maintenance industry to date.
Specifications:
| Model | XJNC-70/35 |
| Power elevator load rating | 700 kN |
| Power slips rated load | 700 kN |
| Applicable pipe diameter | 2 3/8NU,2 3/8EU,2 7/8NU,2 7/8EU, 3 1/2NU,3 1/2EU,4 1/2NU (Insulated pipe) |
| Pipe tripping efficiency | 45pcs/hour |
| Machine power | 9 kW |
| Lifting load | 350kg |
| Lifting height | 4000mm |
| Oil pipe length | 8500~9750mm |
| Qty. arranged pipes | 300pcs (3 1/2EU) |
| Overall size | 11200x2300x2700 |
Product Advantages:
The oil well equipment is an automated and intelligent well maintenance system. It features automatic gripping and releasing of tubing, accurate measurement and documentation of tubing length, seamless switching between primary and secondary elevators, and automated tubing hoisting and lowering. This configuration alleviates operational labor intensity, transitioning the workflow from manual operation to supervised management.
The oil well equipment’s electronic control system adopts a fully digital design. It integrates digital control, PLC centralized control, and fieldbus technologies, realizing the integrated integration of mechanical, electrical, hydraulic, pneumatic, instrumentation, digital, and communication functionalities.
Network, information, hardware, and software components adhere to unified standards and feature a highly modular design. This yields intelligent system operations, outstanding performance capabilities, straightforward and dependable operation, as well as robust component interchangeability.
Key hydraulic and pneumatic components are selected from validated, field-proven products, delivering exceptional quality and consistent operational reliability. All lighting fixtures, signal indicators, and instrument panel electrical devices operate on a rated 24V power supply.
