제품 상세 정보:
결제 및 배송 조건:
|
| 파워 엘리베이터 부하 등급: | 700KN | 파워 슬립 정격 부하: | 700KN |
|---|---|---|---|
| 파이프 트리핑 효율: | 45pcs/시간 | 기계 전원: | 9KW |
| 리프팅 하중: | 350kg | 리프팅 높이: | 4000mm |
| 오일 파이프 길이: | 8500~9750mm | 전체 크기: | 11200x2300x2700mm |

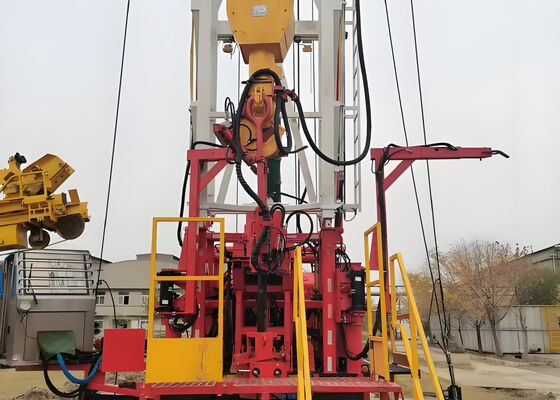

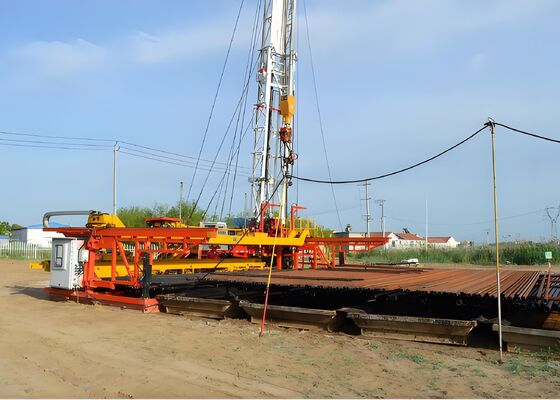

Oil Well Machine Suitable For Running And Retrieving Tubing Drill Pipes In Oil Gas And Water Wells
Product Overview:
The oil well equipment is principally engineered for maintenance operations across oil, gas, and water wells. Its core capabilities encompass running and retrieving tubing, drill pipes, sucker rods, and extracting pumps. It represents the most advanced intelligent and automated well-intervention system available in the global oilfield maintenance sector to date.
Specifications:
| Model | XJNC-70/35 |
| Power elevator load rating | 700 kN |
| Power slips rated load | 700 kN |
| Applicable pipe diameter | 2 3/8NU,2 3/8EU,2 7/8NU,2 7/8EU, 3 1/2NU,3 1/2EU,4 1/2NU (Insulated pipe) |
| Pipe tripping efficiency | 45pcs/hour |
| Machine power | 9 kW |
| Lifting load | 350kg |
| Lifting height | 4000mm |
| Oil pipe length | 8500~9750mm |
| Qty. arranged pipes | 300pcs (3 1/2EU) |
| Overall size | 11200x2300x2700 |
Product Advantages:
The oil well equipment constitutes an automated and intelligent well maintenance system. It is equipped with functionalities including automatic clamping and releasing of oil tubes, precise measurement and documentation of tube length, smooth switching between primary and secondary elevators, as well as automated hoisting and lowering of oil tubes. This setup effectively reduces the labor intensity of operations, enabling the transition of workflow from manual operation to supervised management mode.
The electronic control system of the oil well equipment employs a fully digital design. It incorporates digital control, PLC centralized control, and fieldbus technologies, thereby achieving the integrated convergence of mechanical, electrical, hydraulic, pneumatic, instrumentation, digital, and communication functions.
Network, information, hardware, and software components comply with unified standards and adopt a highly modular design. This configuration enables intelligent system operation, excellent performance capabilities, simple and reliable operation, as well as strong component interchangeability.
Key hydraulic and pneumatic components are sourced from validated, field-verified products, ensuring superior quality and consistent operational dependability. All lighting fixtures, signal indicators, and electrical devices on the instrument panel operate on a rated 24V power supply.
