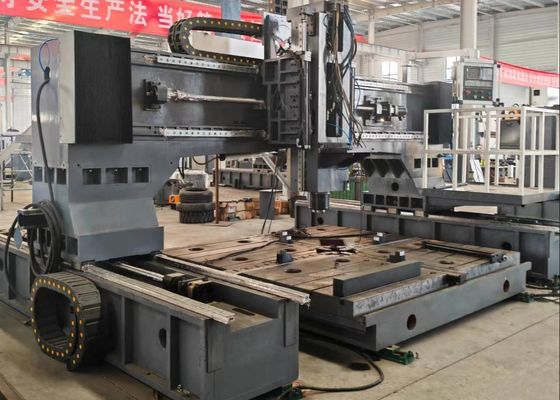

6500x4000x2700mm Overall Size CNC Flange Drilling Milling Machine 28mm T-Slot Width Workbench

6500x4000x2700mm Overall Size CNC Flange Drilling Milling Machine 28mm T-Slot Width Workbench

Application:

The CNC gantry drilling and milling machine is chiefly engineered for drilling, chamfering, tapping, and milling operations on plates and structural components—encompassing flanges, discs, rings, and other workpieces—whose thicknesses lie within the equipment’s effective machining scope. It facilitates the drilling of through holes and blind holes in both single-material components and composite materials alike. The entire machining process is digitally regulated, offering superior operational ease while enabling automated production, high precision, multi-variety processing, and large-scale manufacturing.

Specifications:

Product Features

1. Transmission Device:
The high-precision imported Taiwanese guide rails and sliders ensure smooth operation while effectively enhancing the equipment’s heavy-load bearing capacity.
The X-axis and Z-axis each adopt two rolling linear guides as the guiding and load-bearing rails for lateral and longitudinal movement respectively, meeting the technical requirements for high-speed drilling. For transmission, both axes utilize AC servo motors to drive precision ball screws for rotational motion, thereby achieving linear displacement.

The Y-axis is furnished with two heavy-duty rolling linear guides, each equipped with two square rail sliders to form the Y-axis sliding track. This configuration fulfills the high rigidity and strength requirements of the gantry frame, while delivering technical advantages including a low friction coefficient, high movement speed, excellent vibration absorption, and extended service life. The Y-axis transmission employs servo motor synchronous drive technology to jointly drive the ball screws into rotation, enabling the Y-axis workbench to move back and forth for CNC machining operations.

2. Automatic Lubrication Device and Protective Equipment:

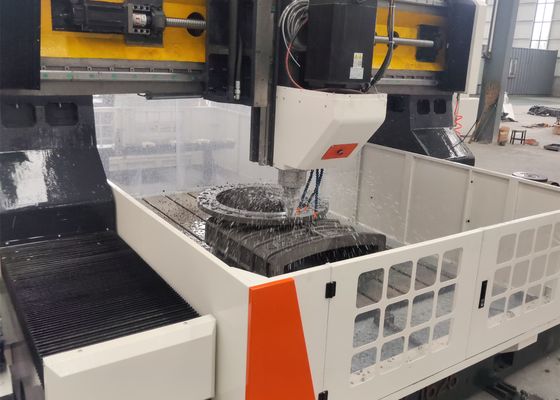

This machine tool is outfitted with a Taiwan-manufactured volumetric partial-pressure automatic lubrication system. It delivers comprehensive, dead-angle-free automatic lubrication to moving components such as guide rails, lead screws, and racks, effectively safeguarding the machine tool’s service life. The X-axis and Y-axis of the equipment are equipped with dust-proof protective covers, while waterproof splash guards are installed around the workbench for enhanced protection.

3. Complete KND Bus Absolute Value Control System:
The system adopts the KND CNC platform, paired with high-precision absolute value series servo motors for drive. It is equipped with an RS232 interface, a color display, and a Chinese-language operation interface, supporting both on-site input and external USB data input

.

This high-performance CNC gantry industrial equipment, specialized in drilling and marking operations for plates and sheet metal, is meticulously engineered for the precision machining of plate-type components and structural parts. Specifically adapted to process workpieces such as flanges, discs, rings, and flat plates, it incorporates a core stipulation that the thickness of these workpieces must strictly conform to the machine’s pre-set effective machining specifications.

In steel structure manufacturing facilities, this equipment executes precision drilling and milling on structural plates and connecting components, thereby laying a reliable foundation for the stable assembly of steel frameworks. Within the wind energy industry, it delivers high-precision machining solutions for wind turbine towers and flanges— a critical process that ensures these components can resist severe environmental conditions (e.g., intense winds, temperature variations). For bridge construction projects, the equipment processes bridge girders and support brackets, facilitating the formation of stable, durable connections designed to withstand dynamic loads throughout the bridge’s extended service life.
