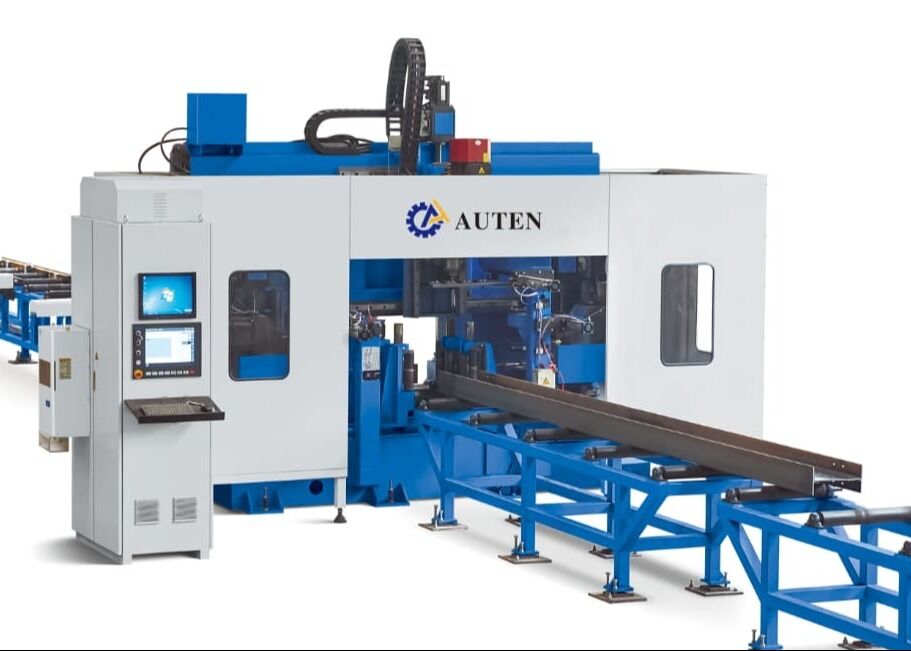

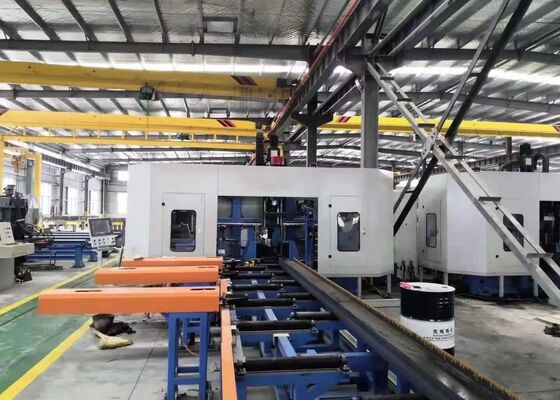

Model BHD1000/3 CNC 3D Beam Drilling Cutting Machine Line 40mm Drilling Diameter
Product Introduction:
The cnc h beam drilling machine is mainly used for drilling, tapping, marking and scoring H-shaped steel, channel steel, angle steel and other steels. It is widely used in steel structure industries such as buildings, garages, towers and grid structures.
1. Necessary and special drilling equipment for building steel structure industry.
2. Drill holes on three surfaces on H beams and channels at the same time, with high precision and high efficiency.
3. 7 CNC axes, automatically complete accurate feeding and positioning.
4. Can recognize AUTOCAD and DSTV work piece drawings and convert them into machining programs.
Product parameters:
| Model | BHD1000/3 |
| H Beam width range (mm) | 100~1000 |
| H Beam height range (mm) | 100~500 |
| Channel steel width range (mm) | 100~1000 |
| Channel steel height range (mm) | 100~250 |
| Max. workpiece thickness (mm) | 80 |
| Max. workpiece length (m) | 12 or 15 (optional) |
| Drilling spindle qty. | Total 3 spindles, one spindle on the upper unit, left side and right side respectively |
| Spindle hole taper | BT40 |
| Max.drilling diameter (mm) | 40 |
| Spindle motor power (kW) | 11/15 |
| Spindle speed (r/min) | 100~3000 |
| Spindle feeding speed (m/min) | 0~10 |
| X-axis feeding speed (m/min) | 0~20 |
| Qty of tool magazine | 3 |
| Tool magazine type and capacity | Row type, 3x4 (optional) |
| Marking unit (optional) | Disc typing, 36 characters, character size Φ10mm |
| CNC system | German Siemens, Japan Panasonic, China INVT |
| Cooling method | Spray cooling, internal cooling + external cooling |
| Machine Overall Size (m) | About 33x5.5x3.5 |
| Total Power(kW) | About 60 |
| The above parameters can be adjusted and changed according to customer's specific requirements. | |
Product Features:
1. The beam saw machine feeding mechanism adopts CNC carriage clamping and feeding with high speed and positioning precision.
2. Three BT40 high-speed spindles are used to drill the three faces of the H-beam. It adopts carbide drill bit, the spindle rotation speed can be up to 3000rpm. The processing efficiency is high and the drilling effect is good. The chips occurred during drilling will be conveyed by the chain-type chip conveyor.
3. The cnc beam drill line cooling system adopts mist cooling, which has the functions of internal cooling and external cooling. Each drilling spindle box is equipped with its own external cooling nozzle and internal cooling connector, which can be selected according to drilling needs. Internal cooling and external cooling can be used separately or simultaneously.
4. The automatic tool changer (ATC) system can be equipped according to the requirement of customers, no need to replace the tool manually, saving time and improving work efficiency.
5. The beam drilling machine hydraulic disk marking machine can be equipped optionally. The disk is positioned via servo motor and can mark 36 different characters rapidly.
6. Automatic scribing and tapping functions replace traditional manual scribing. Scribing tools can be used to mark the plate positions for the next welding process on H-beam flanges and webs, saving time and effort while improving accuracy. Tapping can also be performed on H-beam flanges and webs, significantly improving production efficiency.
7. The cnc beam drilling machine work piece clamping during the feeding and processing, the longitudinal lifting of the clamp and the lateral push clamping, clamp fixing and loosening are all completed by the hydraulic system, which ensures the reliability of the equipment during operation.
8. The control system consists of a host computer and PLC, with key components from renowned international brands. Multiple programming methods allow operators to easily edit various programs. Structural design data generated by third-party AutoCAD or TEKLA Structures systems, such as DXF and DSTV files, can be imported.
During sample demonstration sessions, the CNC beam plate metal drilling, marking, and shearing machine effectively showcases its processing capabilities when working with standard H-beam samples (featuring different flange widths and web thicknesses) as well as channel steel samples of varying sizes. The samples presented in these demonstrations clearly highlight the machine tool’s ability to achieve precise hole positioning, clean tapped threads, and clear marking patterns—fully demonstrating its high precision and reliability in practical application scenarios.
The High-Speed CNC H-Beam Drilling, Marking, and Shearing Machine is primarily utilized in steel structure fabrication plants and bridge construction projects. In steel structure workshops, it performs precision processing on H-beams used in frameworks and support structures, providing a solid foundation for the stable assembly of steel constructions. In bridge construction, it conducts high-precision drilling operations on H-beams, which not only enhances the structural strength of the bridges but also enables them to endure long-term loads effectively. With its high operational efficiency, the machine offers reliable support to these vital infrastructure sectors, ensuring the seamless advancement of associated projects.
